On-off control

Here we will see how to set up a minimum, working closed loop with a very simple threshold-triggered control scheme.

Preamble:

from brian2 import *
from cleo import *

import matplotlib.pyplot as plt

utilities.style_plots_for_docs()

# the default cython compilation target isn't worth it for
# this trivial example
prefs.codegen.target = "numpy"

Set up network

We will use a simple leaky integrate-and-fire network with Poisson spike train input. We use Brian’s standard SpikeMonitor to view resulting spikes here for simplicity, but see the electrodes tutorial for a more realistic electrode recording scheme.

n = 10
population = NeuronGroup(n, '''
            dv/dt = (-v - 70*mV + Rm*I) / tau : volt
            tau: second
            Rm: ohm
            I: amp''',
        threshold='v>-50*mV',
        reset='v=-70*mV'
)
population.tau = 10*ms
population.Rm = 100*Mohm
population.I = 0*mA
population.v = -70*mV

input_group = PoissonGroup(n, np.linspace(0, 100, n)*Hz + 10*Hz)

S = Synapses(input_group, population, on_pre='v+=5*mV')
S.connect(condition='abs(i-j)<=3')

pop_mon = SpikeMonitor(population)

net = Network([population, input_group,S, pop_mon])

print("Recorded population's equations:")
population.user_equations

Recorded population's equations:

\[\begin{split}\begin{align*}\frac{\mathrm{d}v}{\mathrm{d}t} &= \frac{I Rm - 70 mV - v}{\tau} && \text{(unit of $v$: $\mathrm{V}$)}\\ \tau &&& \text{(unit: $\mathrm{s}$)}\\ Rm &&& \text{(unit: $\mathrm{ohm}$)}\\ I &&& \text{(unit: $\mathrm{A}$)}\end{align*}\end{split}\]

Run simulation

net.run(200*ms)

INFO       No numerical integration method specified for group 'neurongroup', using method 'exact' (took 0.15s). [brian2.stateupdaters.base.method_choice]

sptrains = pop_mon.spike_trains()
fig, ax = plt.subplots()
ax.eventplot([t / ms for t in sptrains.values()], lineoffsets=list(sptrains.keys()))
ax.set(title='population spiking', ylabel='neuron index', xlabel='time (ms)')

[Text(0.5, 1.0, 'population spiking'),
 Text(0, 0.5, 'neuron index'),
 Text(0.5, 0, 'time (ms)')]

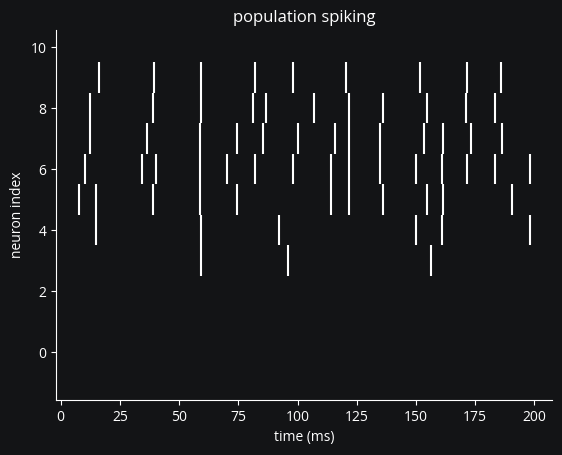

Because lower neuron indices receive very little input, we see no spikes for neuron 0. Let’s change that with closed-loop control.

IO processor setup

We use the IOProcessor class to define interactions with the network. To achieve our goal of making neuron 0 fire, we’ll use a contrived, simplistic setup where

1. the recorder reports the voltage of a given neuron (of index 5 in our case),

2. the controller outputs a pulse whenever that voltage is below a certain threshold, and

3. the stimulator applies that pulse to the specified neuron.

So if everything is wired correctly, we’ll see bursts of activity in just the first neuron.

from cleo.recorders import RateRecorder, VoltageRecorder
from cleo.stimulators import StateVariableSetter

i_rec = int(n / 2)
i_ctrl = 0
sim = CLSimulator(net)
v_rec = VoltageRecorder(name="rec")
sim.inject(v_rec, population[i_rec])
sim.inject(
    StateVariableSetter(name="stim", variable_to_ctrl="I", unit=nA), population[i_ctrl]
)

CLSimulator(io_processor=None, devices={VoltageRecorder(brian_objects={<StateMonitor, recording ['v'] from 'neurongroup_subgroup'>}, sim=..., name='rec', voltage_var_name='v', mon=<StateMonitor, recording ['v'] from 'neurongroup_subgroup'>), StateVariableSetter(brian_objects=set(), sim=..., name='stim', value=0, default_value=0, save_history=True, variable_to_ctrl='I', unit=namp, neuron_groups=[<Subgroup 'neurongroup_subgroup_1' of 'neurongroup' from 0 to 1>])})

We need to implement the LatencyIOProcessor object. For a more sophisticated case we’d use ProcessingBlock objects to decompose the computation in the process function.

from cleo.ioproc import LatencyIOProcessor

trigger_threshold = -60*mV
class ReactivePulseIOProcessor(LatencyIOProcessor):
    def __init__(self, pulse_current=1):
        super().__init__(sample_period_ms=1)
        self.pulse_current = pulse_current
        self.out = {}

    def process(self, state_dict, time_ms):
        v = state_dict['rec']
        if v is not None and v < trigger_threshold:
            self.out['stim'] = self.pulse_current
        else:
            self.out['stim'] = 0

        return (self.out, time_ms)

sim.set_io_processor(ReactivePulseIOProcessor(pulse_current=1))

CLSimulator(io_processor=<__main__.ReactivePulseIOProcessor object at 0x7f57975a1600>, devices={VoltageRecorder(brian_objects={<StateMonitor, recording ['v'] from 'neurongroup_subgroup'>}, sim=..., name='rec', voltage_var_name='v', mon=<StateMonitor, recording ['v'] from 'neurongroup_subgroup'>), StateVariableSetter(brian_objects=set(), sim=..., name='stim', value=0, default_value=0, save_history=True, variable_to_ctrl='I', unit=namp, neuron_groups=[<Subgroup 'neurongroup_subgroup_1' of 'neurongroup' from 0 to 1>])})

And run the simulation:

sim.run(200*ms)

fig, (ax1, ax2) = plt.subplots(2, 1, sharex=True)
ax1.plot(pop_mon.t / ms, pop_mon.i[:], "|")
ax1.plot(
    pop_mon.t[pop_mon.i == i_ctrl] / ms,
    pop_mon.i[pop_mon.i == i_ctrl],
    "|",
    c="#C500CC",
)
ax1.set(title="population spiking", ylabel="neuron index", xlabel="time (ms)")
ax2.fill_between(
    v_rec.mon.t / ms, (v_rec.mon.v.T < trigger_threshold)[:, 0], color=(0.0, 0.72, 1.0)
)
ax2.set(title="pulses", xlabel="time (ms)", ylabel="pulse on/off (1/0)", yticks=[0, 1])
plt.tight_layout()

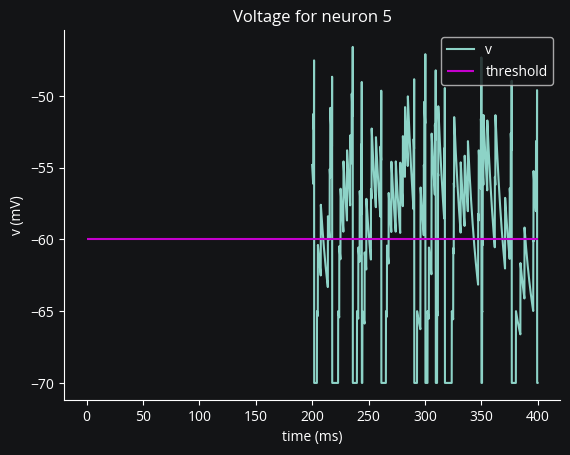

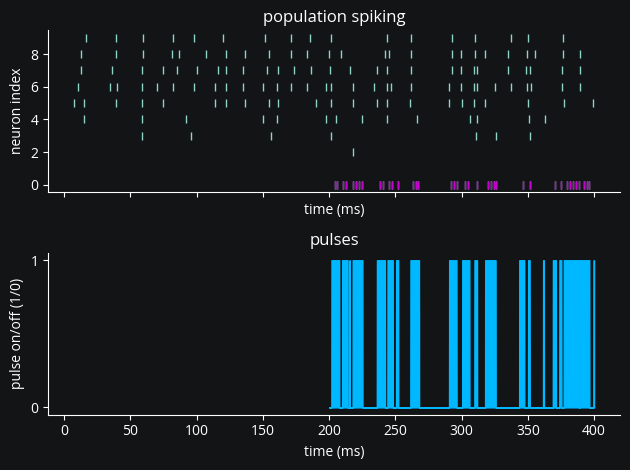

Yes, we see the IO processor triggering pulses as expected. And here’s a plot of neuron 5’s voltage to confirm that those pulses are indeed where we expect them to be, whenever the voltage is below -60 mV.

fig, ax = plt.subplots()
ax.set(title=f"Voltage for neuron {i_rec}", ylabel="v (mV)", xlabel='time (ms)')
ax.plot(v_rec.mon.t/ms, v_rec.mon.v.T / mV);
ax.hlines(-60, 0, 400, color='#c500cc');
ax.legend(['v', 'threshold'], loc='upper right');

Conclusion

In this tutorial we’ve seen the basics of configuring an IOProcessor to implement a closed-loop intervention on a Brian network simulation.
